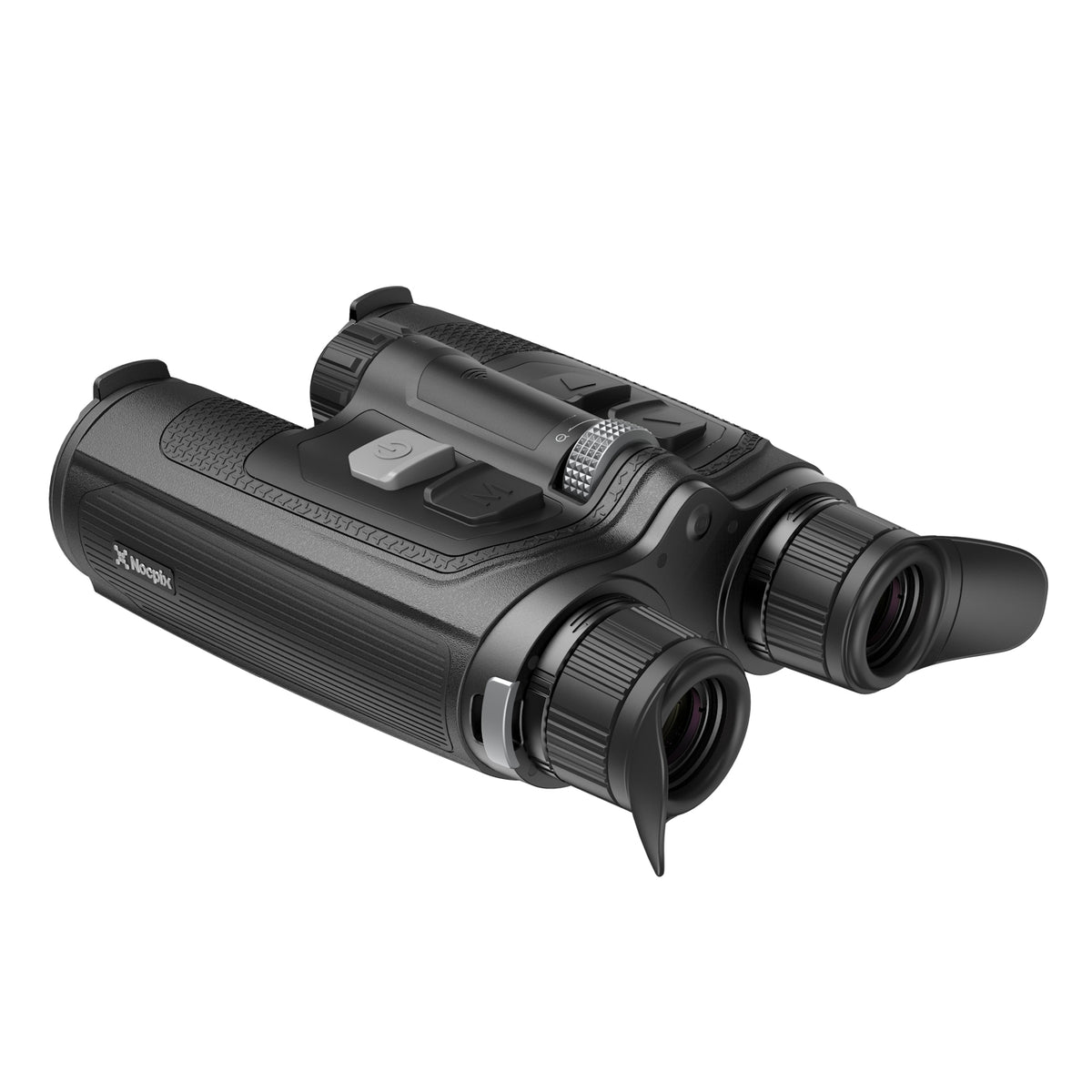

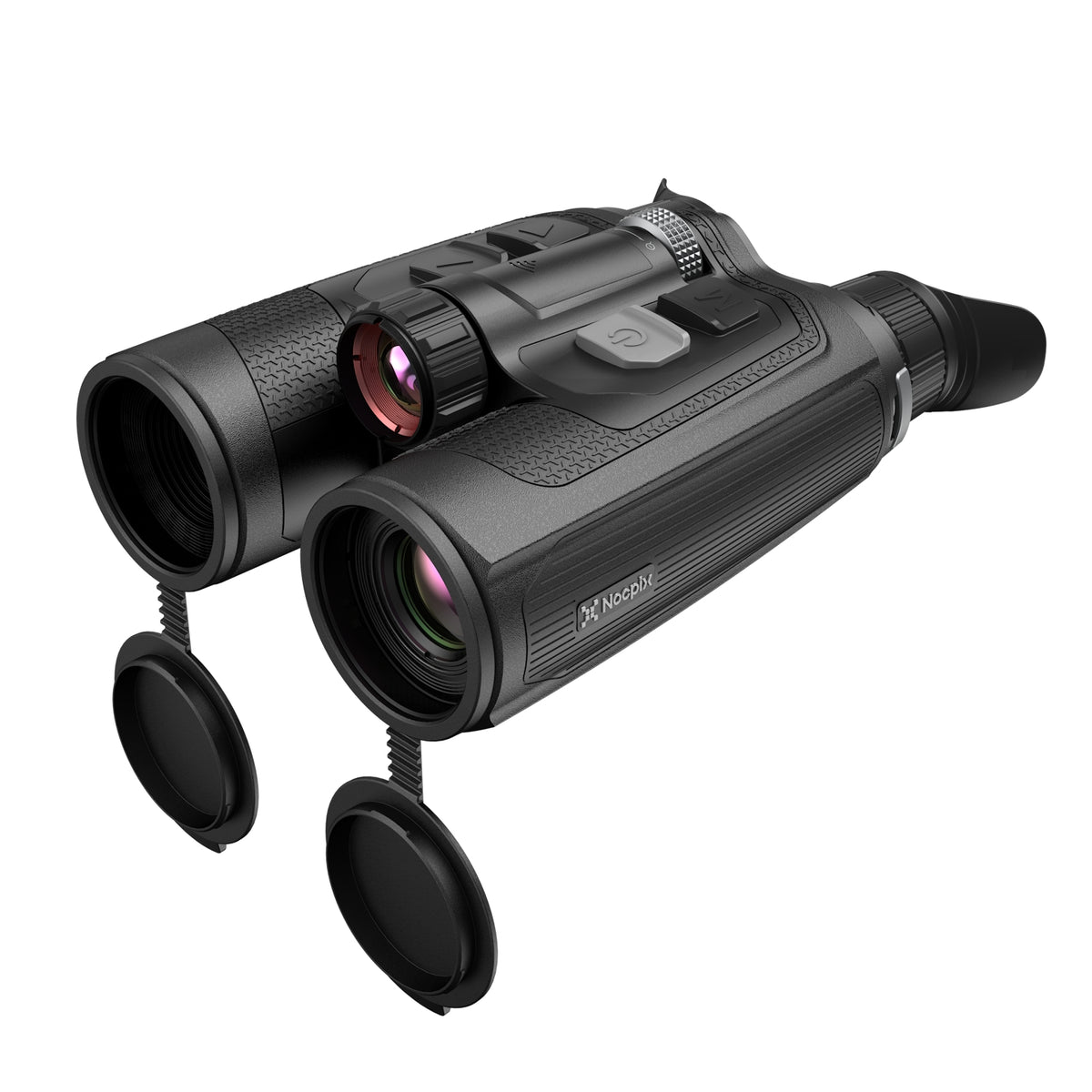

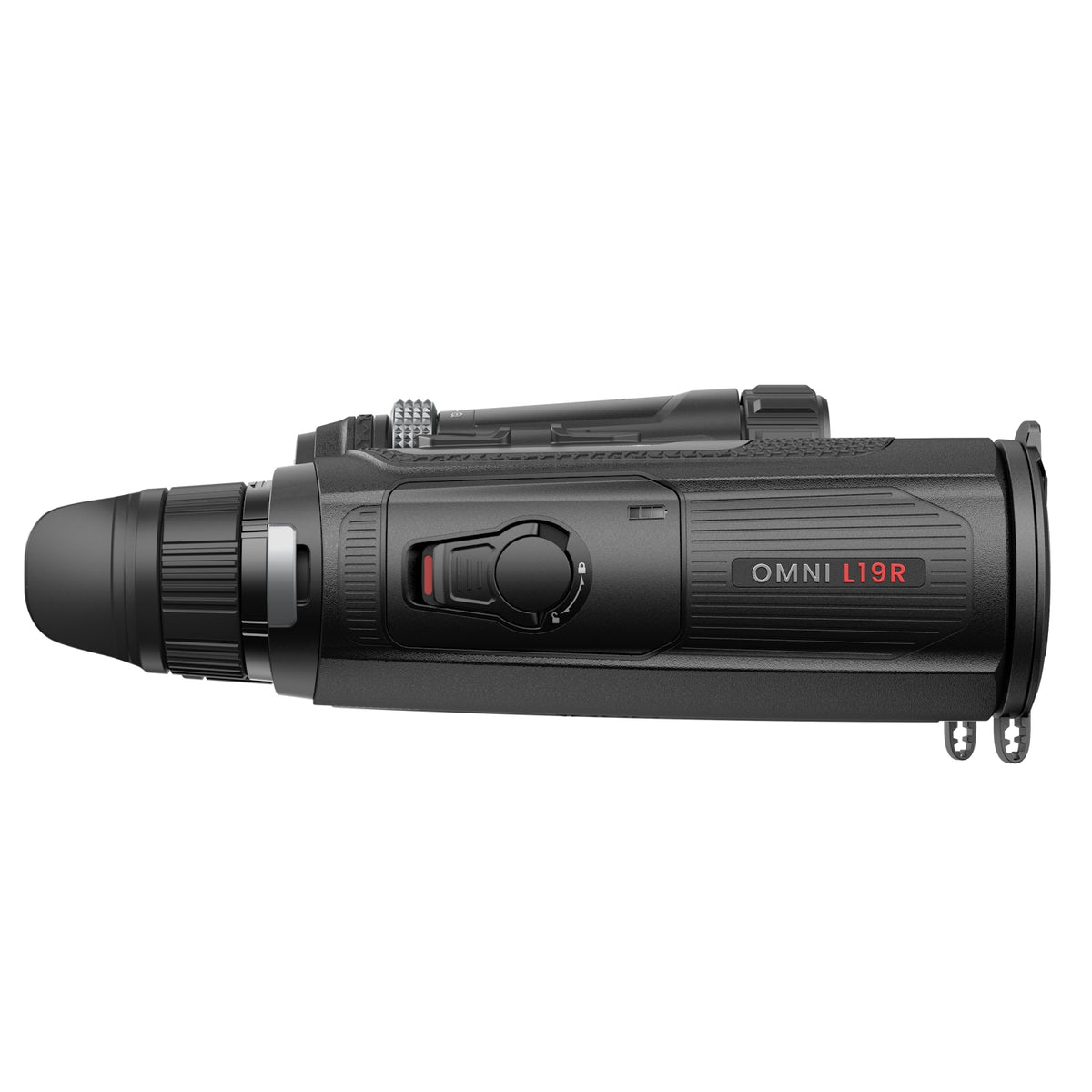

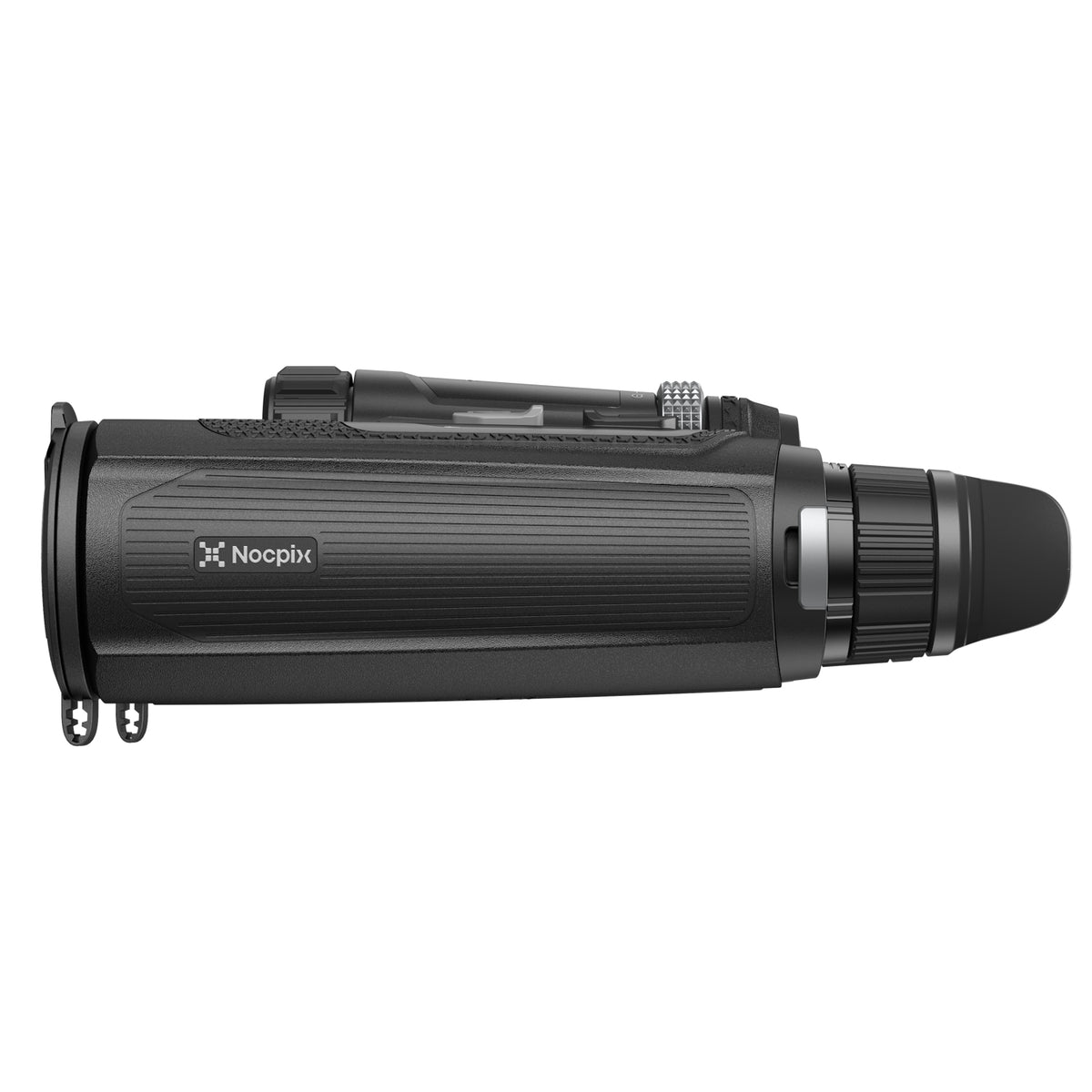

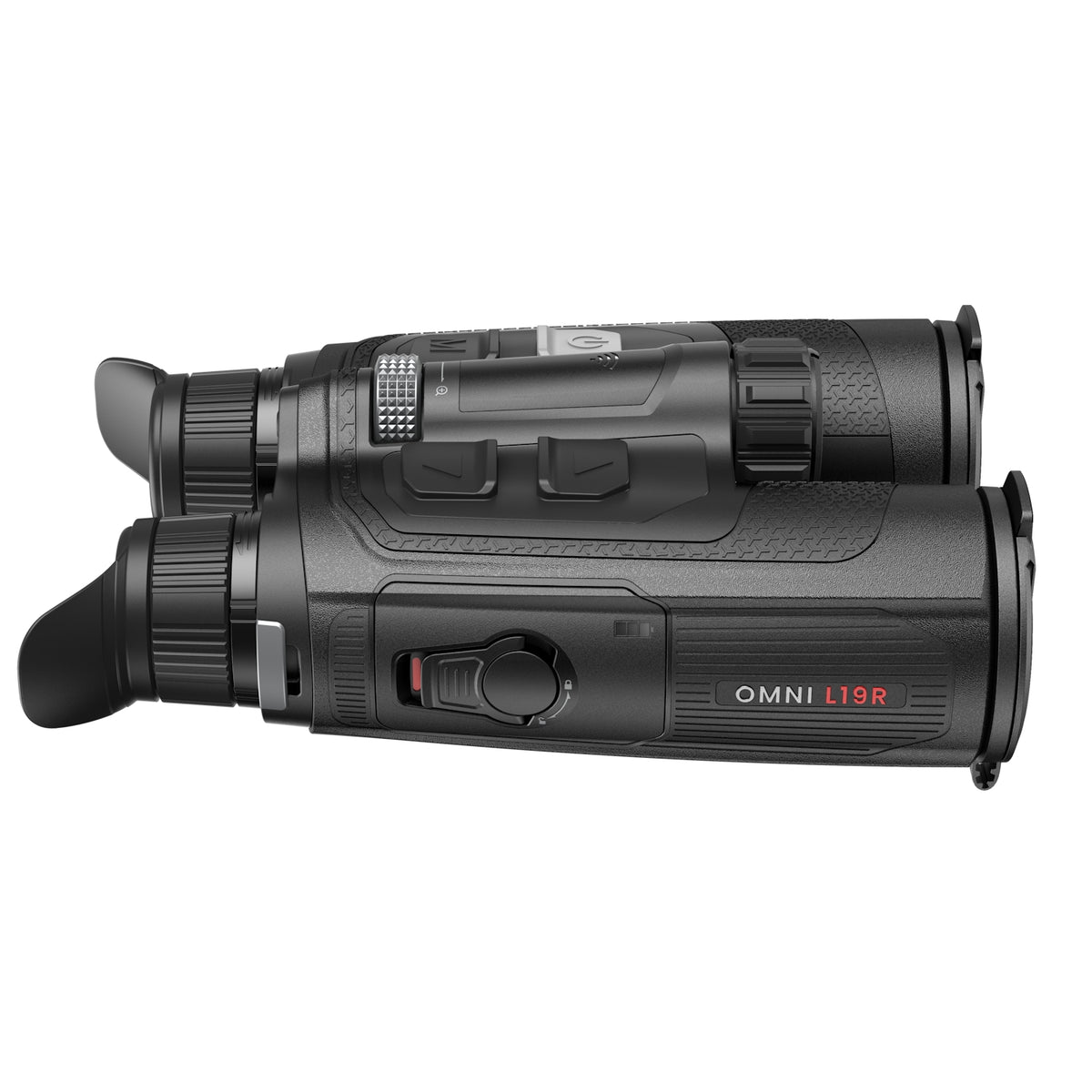

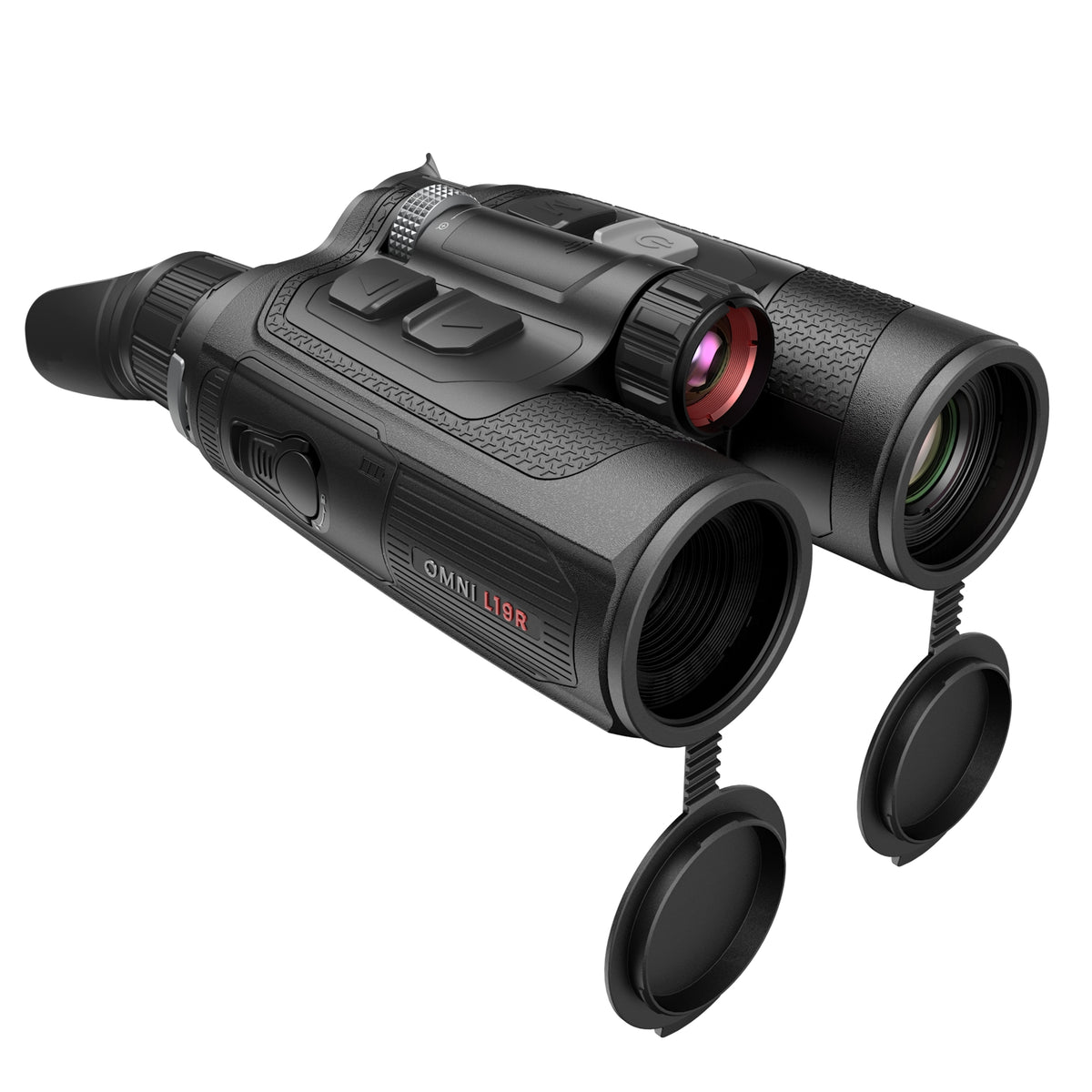

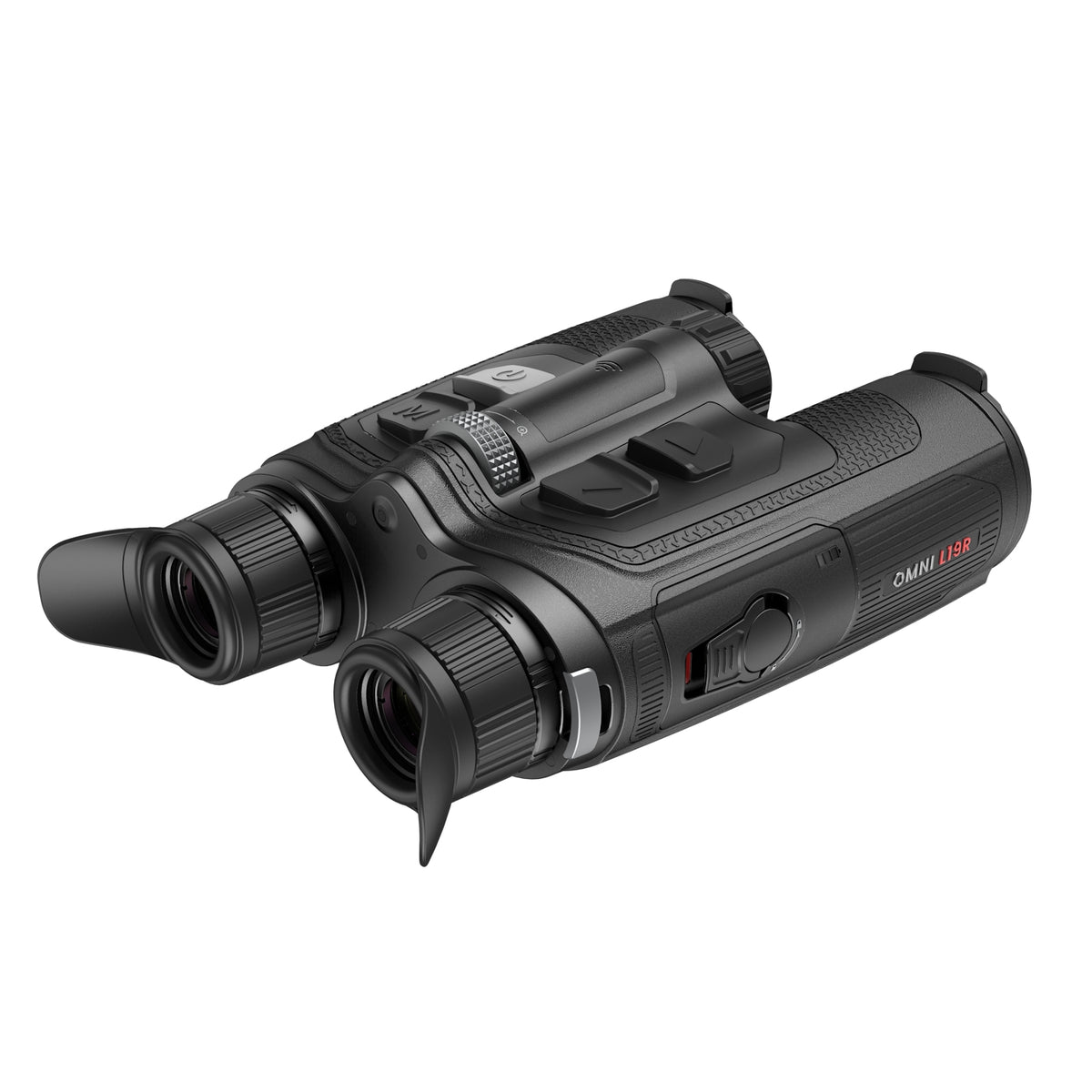

Nocpix Omni L19R 8K Fusion Binocular - Pre Order

The Nocpix OMNI L19R 8K Fusion Binocular is an advanced multispectral observation system combining an 8K digital day and night imaging sensor with high-performance thermal imaging in a binocular-style design. Created for demanding wildlife observation, hunting, security and outdoor applications, the OMNI L19R allows users to switch between detailed digital imagery and thermal imaging to identify targets in daylight, twilight and complete darkness. With a 384×288 thermal sensor, 50mm F1.8 digital lens, 19mm F0.9 thermal lens, electronic image stabilisation and integrated laser rangefinder, the L19R provides a versatile all-day observation solution in a single compact unit.

8K Digital Imaging

At the heart of the OMNI L19R is an 8K digital sensor with 8192 × 6144 resolution, providing an exceptionally detailed image for daytime and low-light observation. The dedicated 50mm F1.8 digital lens combines a bright aperture with a 3x to 18x magnification range, helping preserve detail when identifying wildlife and other distant subjects.

The digital system offers multiple scene-specific imaging modes designed to optimise viewing in different lighting conditions, including daylight, twilight and low-light environments. The system can also work alongside the thermal channel for a more comprehensive view of the subject.

High-Sensitivity Thermal Imaging

For observation after dark or when subjects are obscured by challenging lighting conditions, the L19R features a 384×288 thermal sensor with 12μm pixel pitch and a highly sensitive NETD of ≤15mK. The 50Hz thermal imaging system is designed to detect subtle temperature differences and provide clear thermal imagery in demanding conditions.

Its 19mm F0.9 thermal objective provides a wide thermal field of view of approximately 13.8° × 10.4°, equivalent to around 24.3 × 18.2 metres at 100 metres, with thermal magnification from 1.5x to 12x.

8K and Thermal Fusion

The OMNI L19R brings digital and thermal imaging together in one binocular-style device, allowing users to rapidly switch between imaging modes depending on the situation. Electronic image stabilisation helps provide a steadier view while scanning or observing at higher magnification, while picture-in-picture functionality can combine thermal and digital information for enhanced target identification.

Integrated Laser Rangefinder and Ballistic Functions

The built-in Class 1 laser rangefinder can measure distances of up to 1,000 metres, providing useful distance information when assessing subjects or terrain. The OMNI L19R also supports ballistic calculations, with the ability to store multiple projectile profiles for compatible applications.

Flexible IR Illumination

For digital night vision, the L19R uses an interchangeable infrared illuminator, with 940nm IR supplied and 850nm available as an option. This provides additional flexibility when observing in complete darkness while retaining the ability to switch between digital and thermal imaging depending on the conditions.

Designed for Comfortable Outdoor Observation

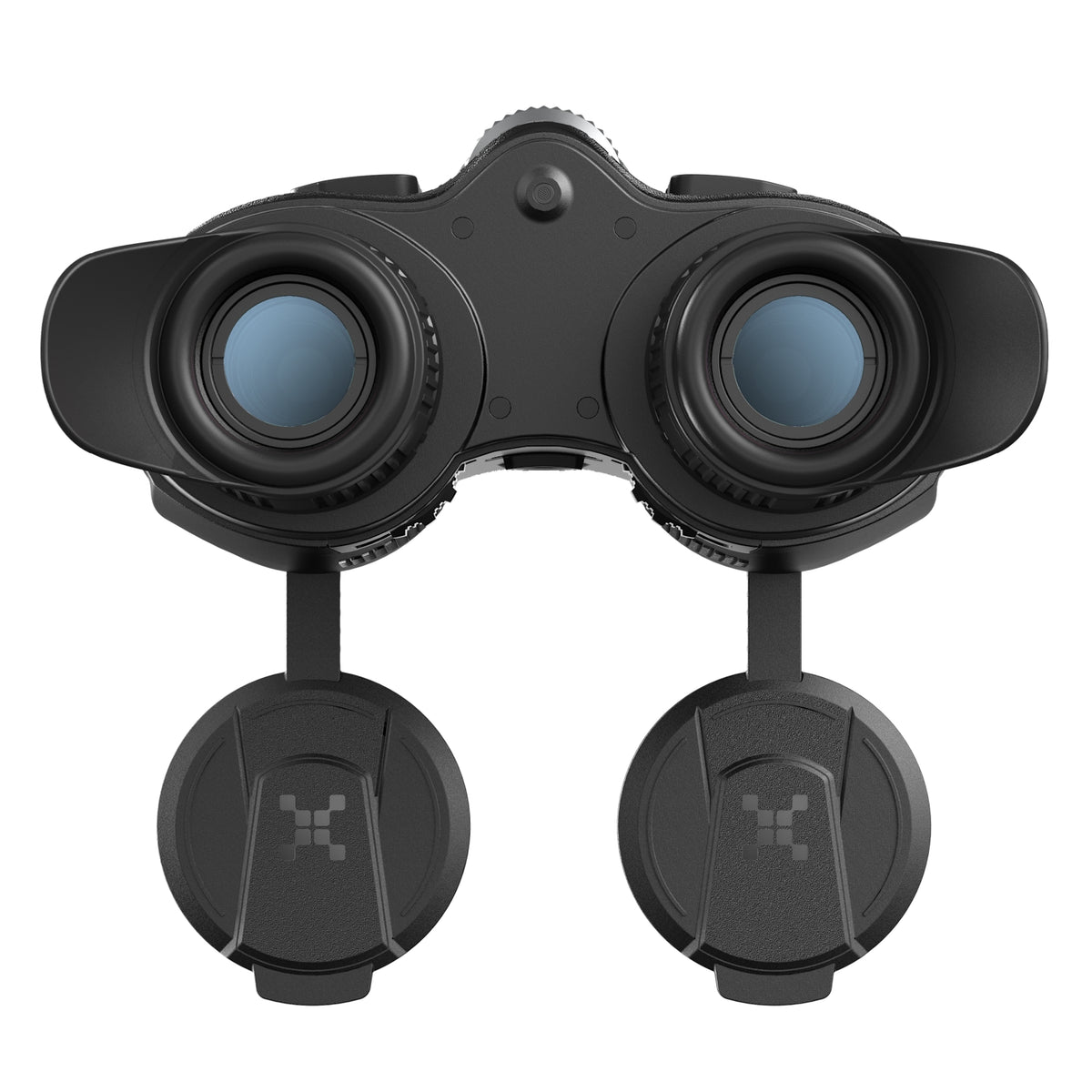

The binocular-style OMNI design provides a familiar and comfortable way to hold and operate the device, while its magnesium-alloy housing and non-slip grip provide durability for demanding outdoor use. The large 12mm exit pupil, 25mm eye relief and adjustable dioptre help make the L19R comfortable for extended viewing.

A polarity-free battery compartment makes replacing the two removable 18650 batteries straightforward, while the built-in battery provides additional operating capacity. Total runtime is rated at up to 7.5 hours under stated test conditions.

Key Features

• Nocpix OMNI L19R 8K Fusion Binocular
• Multispectral digital and thermal imaging system
• 8K digital sensor – 8192 × 6144 pixels
• 50mm F1.8 digital objective
• Digital magnification: 3x–18x
• 384 × 288 thermal sensor
• 12μm thermal pixel size
• NETD ≤15mK
• 50Hz thermal frame rate
• 19mm F0.9 thermal objective
• Thermal magnification: 1.5x–12x
• Electronic image stabilisation
• Integrated laser rangefinder up to 1,000m
• Class 1 laser
• Ballistic calculation support
• 940nm IR illuminator supplied
• 850nm IR option available
• Picture-in-picture digital and thermal viewing
• 0.5-inch AMOLED display
• 25mm eye relief
• 12mm exit pupil
• ±4D dioptre adjustment
• Internal storage: 64GB
• Built-in battery plus two replaceable 18650 batteries
• Up to 7.5 hours operating time
• Wi-Fi, Bluetooth and N-Link connectivity
• Nocpix App support
• Photo, video and audio recording
• Integrated tripod mounting
• IP67 protection
• Magnesium-alloy construction
• Non-slip ergonomic grip

Ideal For

The Nocpix OMNI L19R is ideal for wildlife observation, hunting, nature watching, game spotting, security, pest control and outdoor exploration. Its combination of high-resolution 8K digital imaging and sensitive thermal detection makes it particularly useful when observations need to continue from bright daylight through dusk and into complete darkness.

The wide-angle 19mm thermal lens is well suited to scanning larger areas for heat signatures, while the 8K digital channel provides additional detail for identifying subjects. Integrated ranging, image stabilisation, recording and smartphone connectivity make the L19R a highly versatile choice for serious outdoor observation.

Specifications

• Model: OMNI L19R
• Digital Sensor: 8192 × 6144, 1.2μm
• Digital Lens: 50mm F1.8
• Digital Magnification: 3x–18x
• Digital FOV: 8.8° × 6.6°
• Digital FOV at 100m: 15.4 × 11.5m
• Thermal Sensor: 384 × 288, 12μm
• Thermal Sensitivity: NETD ≤15mK
• Thermal Frame Rate: 50Hz
• Thermal Lens: 19mm F0.9
• Thermal Magnification: 1.5x–12x
• Thermal FOV: 13.8° × 10.4°
• Thermal FOV at 100m: 24.3 × 18.2m
• Thermal Detection Range: up to approximately 1,000m depending on conditions and target
• Laser Rangefinder: up to 1,000m
• Display: 0.5-inch AMOLED
• Exit Pupil: 12mm
• Eye Relief: 25mm
• Dioptre: ±4D
• Storage: 64GB
• Battery: Internal battery + 2 × replaceable 18650 batteries
• Runtime: up to 7.5 hours
• External Power: USB-C 5V
• Connectivity: Wi-Fi, Bluetooth, N-Link
• Recording: Photo, video and audio
• IR Illuminator: 940nm supplied; 850nm optional
• Protection: IP67
• Operating Temperature: -20°C to +50°C
• Dimensions: approximately 198 × 144 × 75mm
• Weight: under 900g without batteries
• Tripod Mount: 1/4"-20 UNC
• Ballistic Calculation: Supported
