• Celestron NexImage 10 Solar System Colour Imager

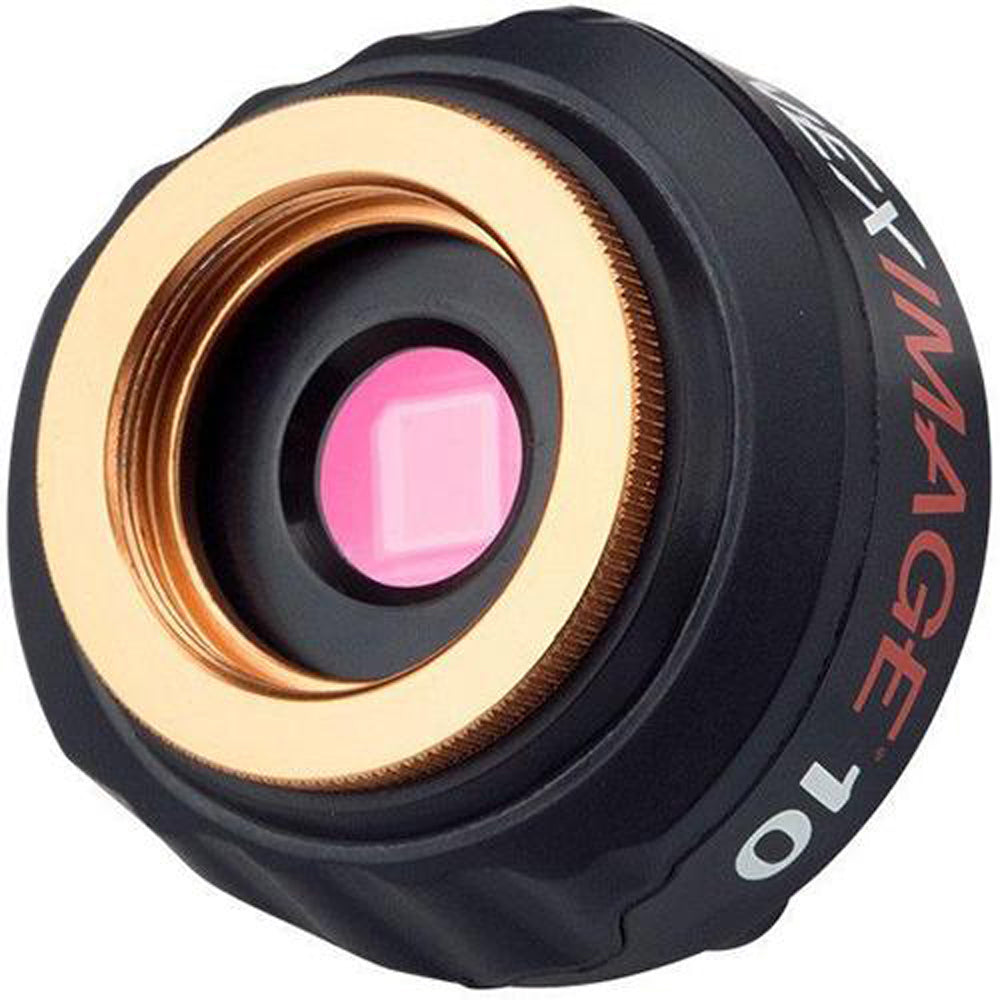

Celestron NexImage 10 Solar System Colour Imager

Sorry, currently out of stock

Click here to be notified by email when Celestron NexImage 10 Solar System Colour Imager becomes available.
  • Easy to use color camera, provides live video for quick focusing
  • 3856 x 2764-pixel array with small pixels, provides high resolution images
  • Includes Celestron iCap software for image capture and export
  • Includes RegiStax stacking software that automatically filters the best images, aligns, and stacks your planetary images


You have your new telescope and have observed Saturn and Jupiter. Now you're ready to take the next step and start imaging them. But where do you begin? The Celestron NexImage 10 Solar System Imager is the perfect solution.

The NexImage 10 is our first NexImage series camera to incorporate USB 3.0 SuperSpeed! With more than ten million pixels coupled with high speed data transmission, the NexImage 10 produces clear and detailed planetary images like never before. With super small 1.67µm pixels, smaller telescopes with shorter focal lengths are still going to yield tremendous planetary detail. It’s one of the best valued, high-res USB 3 planetary imaging cameras on the market. Best of all, NexImage includes everything you need to get started, including Celestron's easy-to-use software suite. The iCap capture software and RegiStax stacking software are the same powerful programs included with Celestron's high-end Skyris cameras.

Simply point your telescope at the Moon or a planet and record a quick video. The software analyzes each frame of video, throws away the fuzzy ones, and perfectly aligns the remaining images. The result is a bright, clear image with the maximum amount of color and detail. NexImage 10 is a great way to get started with astroimaging, especially if you live in a light-polluted area. If you can see the planet in the sky, you can image it with NexImage 10!



Color or Monochrome Color
Power Requirements Powered by USB
USB Cable High-Speed 3.0, 10' cable length
Camera Housing Construction ABS with aluminum connection ring
Optical Window IR Cutoff Filter
A/D Conversion 12 bit
Imaging Sensor ON Semi MT9J003 Color CMOS
Pixel Size 1.67-micron square
Camera Resolution (in Pixels) 3856 x 2764
Total Number of Pixels 10.7 MP
Mounting 1.25" barrel and C-thread
Sensor Size 6.4mm x 4.6mm (0.25" x 0.18")
Shutter Electronic Rolling Shutter
Software Compatibility iCap | IC Capture | DirectShow | oaCapture
Operating Environment -40°F to 104°F (-40°C to 40°C)
Sub-Framing Hardware ROI
Exposure Range 0.0001 to 10 seconds
Frames per second Up to 60 (14.7 fps at full frame)
Back Focus Distance 13.1mm with nosepiece | 10.6mm without nosepiece
USB Connection High-Speed USB 2.0 cable
Recommended/Best Usage Getting started in lunar, solar, and planetary imaging
Key Features High 10 MP resolution with 1.67 micron pixels allows larger image scale for smaller telescopes
Weight 2.0 oz (57 g)
Included Items NexImage 10 camera body| 1.25" nosepiece| Software CD| USB cable| Instruction manual
