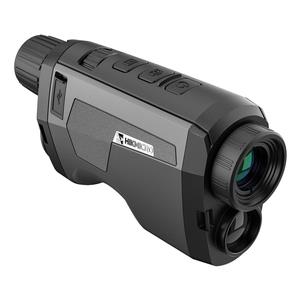

The Gryphon Fusion Monocular introduces many unique features including ground-breaking bi-spectrum and Fusion technology which uses a thermal sensor alongside a conventional optical camera to deliver a super-detailed thermal image.

You can use the Gryphon in several distinct image modes including a conventional thermal monocular with the choice of 4 colour palettes, highly detailed daylight & night vision optical camera or the unique Fusion mode which uses the detail from the optical channel to boost the definition and detail of the thermal image.

The Gryphon chassis also introduces a range of new features. These include a jog wheel that allows you to scroll the magnification up and down as you would with a conventional optical scope, an optional laser range finder and a removable 18650 battery. The large 1024x768 OLED display gives you a bright and crisp view of your surroundings that’s easy on your eye.

At the centre of the Gryphon is HIKMICRO’s 384x288px, 12µm thermal sensor with a sub-35mk NETD. This highly accurate thermal sensor is capable of detecting small temperature differences, building a highly detailed image, even in the harshest of conditions.

• Unit Type Thermal
• Colour Palettes Yes
• Detection Range 1750m
• Display Resolution 1024x768
• Display Type OLED
• FOV @ 100 yards 7.5°
• Magnification (Digital) 8x
• Magnification (Optical) 3.3x
• NETD <35mK
• Objective Lens Diameter 35mm
• Operating Temperature -20/+55°C
• Pixel Pitch 12μm
• Refresh Rate 50HZ
• Sensor Resolution 384x288
• Video Recording
• WiFi
